815

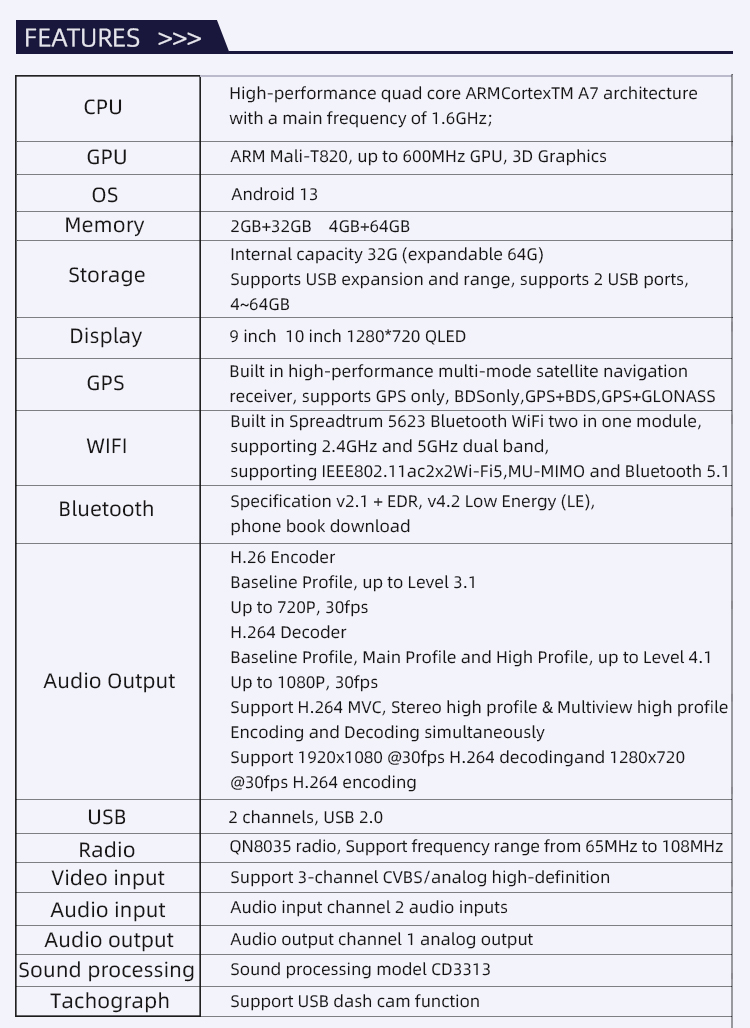

FEATURES >>>

CPU: High-performance quad core ARMCortexTM A7 architecture with a main frequency of 1.6GHz;

GPU: ARM Mali-T820, up to 600MHz GPU, 3D Graphics

Memory: 2GB+32GB 4GB+64GB

Storage: Internal capacity 32G (expandable 64G)Supports USB expansion and range, supports 2 USB ports, 4~64GB

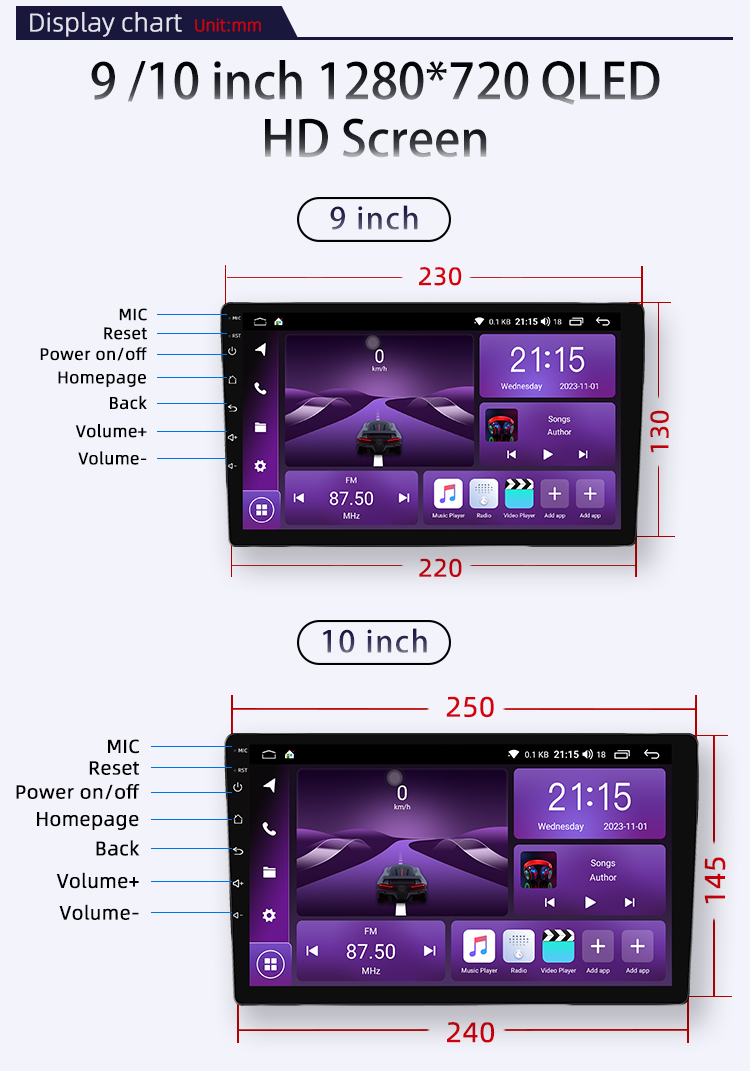

Display: 9 inch  10 inch  1280*720 QLED

GPS: Built in high-performance multi-mode satellite navigation receiver, supports GPS only, BDSonly,GPS+BDS,GPS+GLONASS

WIFI: Built in Spreadtrum 5623 Bluetooth WiFi two in one module, supporting 2.4GHz and 5GHz dual band, supporting IEEE802.11ac2x2Wi-Fi5,MU-MIMO

OS: Android 13

Bluetooth: Built in Bluetooth 5.1； Specification v2.1 + EDR, v4.2 Low Energy (LE), phone book download

Audio Output: H.26 EncoderBaseline Profile, up to Level 3.1Up to 720P, 30fps;

H.264 Decoder Baseline Profile, Main Profile and High Profile, up to Level 4.1Up to 1080P, 30fps;

Support H.264 MVC, Stereo high profile & Multiview high profile Encoding and Decoding simultaneously;

Support 1920x1080 @30fps H.264 decodingand 1280x720 @30fps H.264 encoding;

Radio: QN8035 radio, Support frequency range from 65MHz to 108MHz

USB: 2 channels, USB 2.0

Video input: Support 3-channel CVBS/analog high-definition

Audio input: Audio input channel 2 audio inputs

Audio output: Audio output channel 1 analog output

Sound processing: Sound processing model CD3313

Mobile interconnection: Supports Android or Apple phone connectivity.

Tachograph: Support USB dash cam function
