MTK8227L

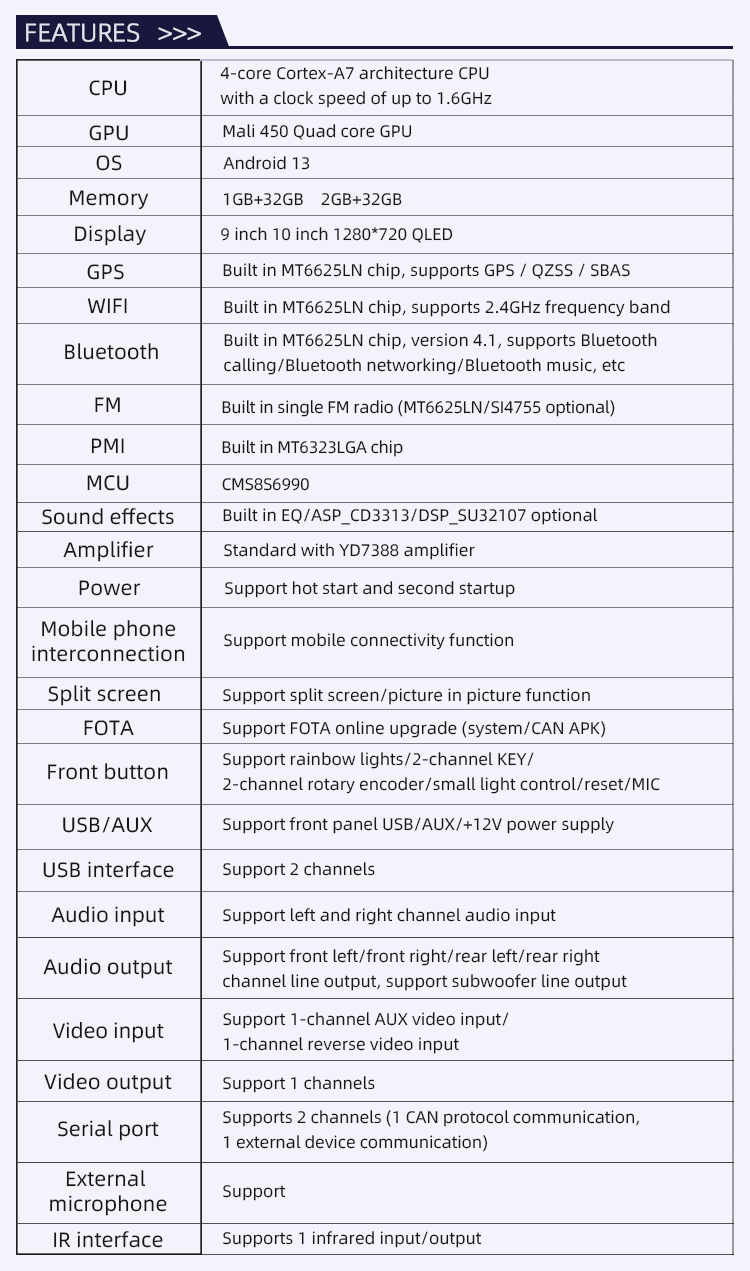

FEATURES >>>

CPU: 4-core Cortex-A7 architecture CPU with a clock speed of up to 1.6GHz

GPU: Mali 450 Quad core GPU

Memory: 1GB+32GB  2GB+32GB

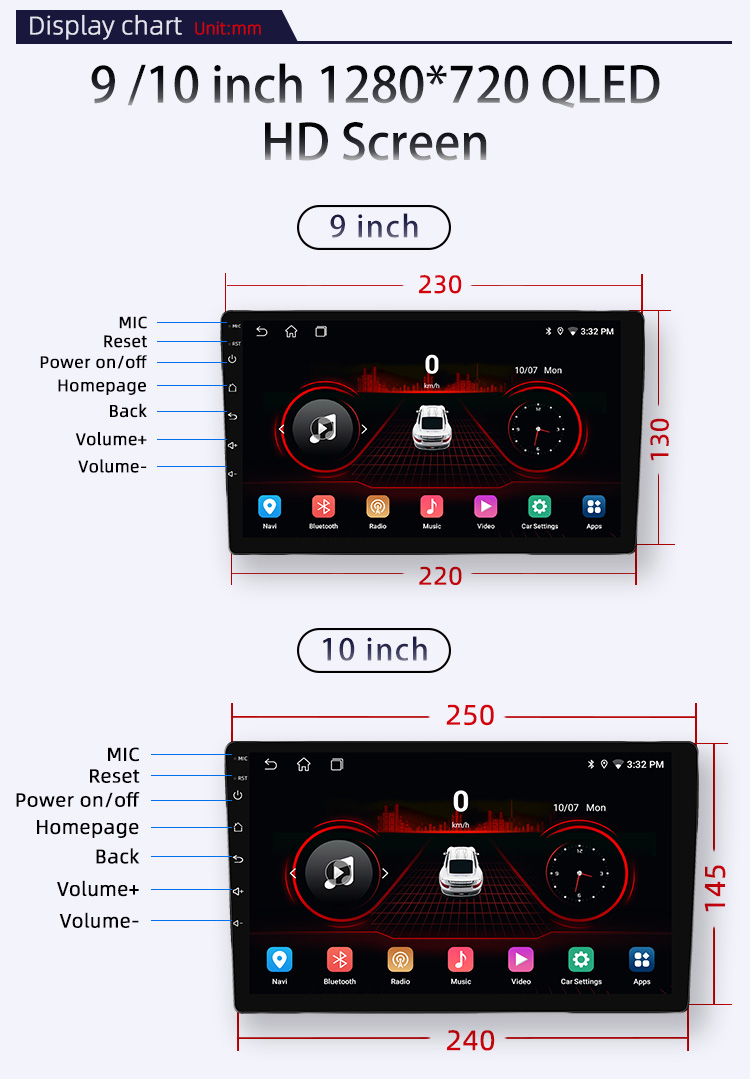

Display: 9 inch  10 inch  1280*720 QLED

GPS: Built in MT6625LN chip, supports GPS / QZSS / SBAS

WIFI: Built in MT6625LN chip, supports 2.4GHz frequency band

OS: Android 13

Bluetooth: Built in MT6625LN chip, version 4.1, supports Bluetooth calling/Bluetooth networking/Bluetooth music, etc

FM: Built in single FM radio (MT6625LN/SI4755 optional)

PMI: Built in MT6323LGA chip

MCU: CMS8S6990

Sound effects: Built in EQ/ASP_CD3313/DSP_SU32107 optional

Amplifier: Standard with YD7388 amplifier

Mobile phone interconnection: Support mobile connectivity function

Split screen: Support split screen/picture in picture function

FOTA: Support FOTA online upgrade (system/CAN APK)

Front button: Support rainbow lights/2-channel KEY/2-channel rotary encoder/small light control/reset/MIC

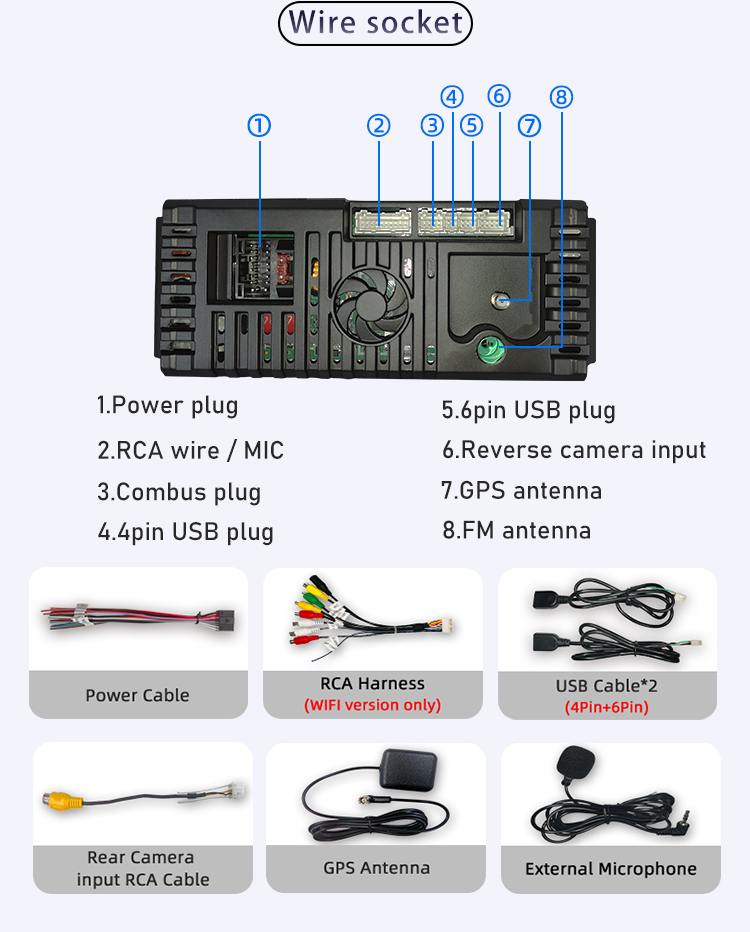

USB/AUX: Support front panel USB/AUX/+12V power supply

USB interface: Support 2 channels

Audio input: Support left and right channel audio input

Audio output: Support front left/front right/rear left/rear right channel line output, support subwoofer line output

Video input: Support 1-channel AUX video input/1-channel reverse video input

Serial port: Supports 2 channels (1 CAN protocol communication, 1 external device communication)

External microphone: Support

IR interface: Supports 1 infrared input/output
