MTK6580

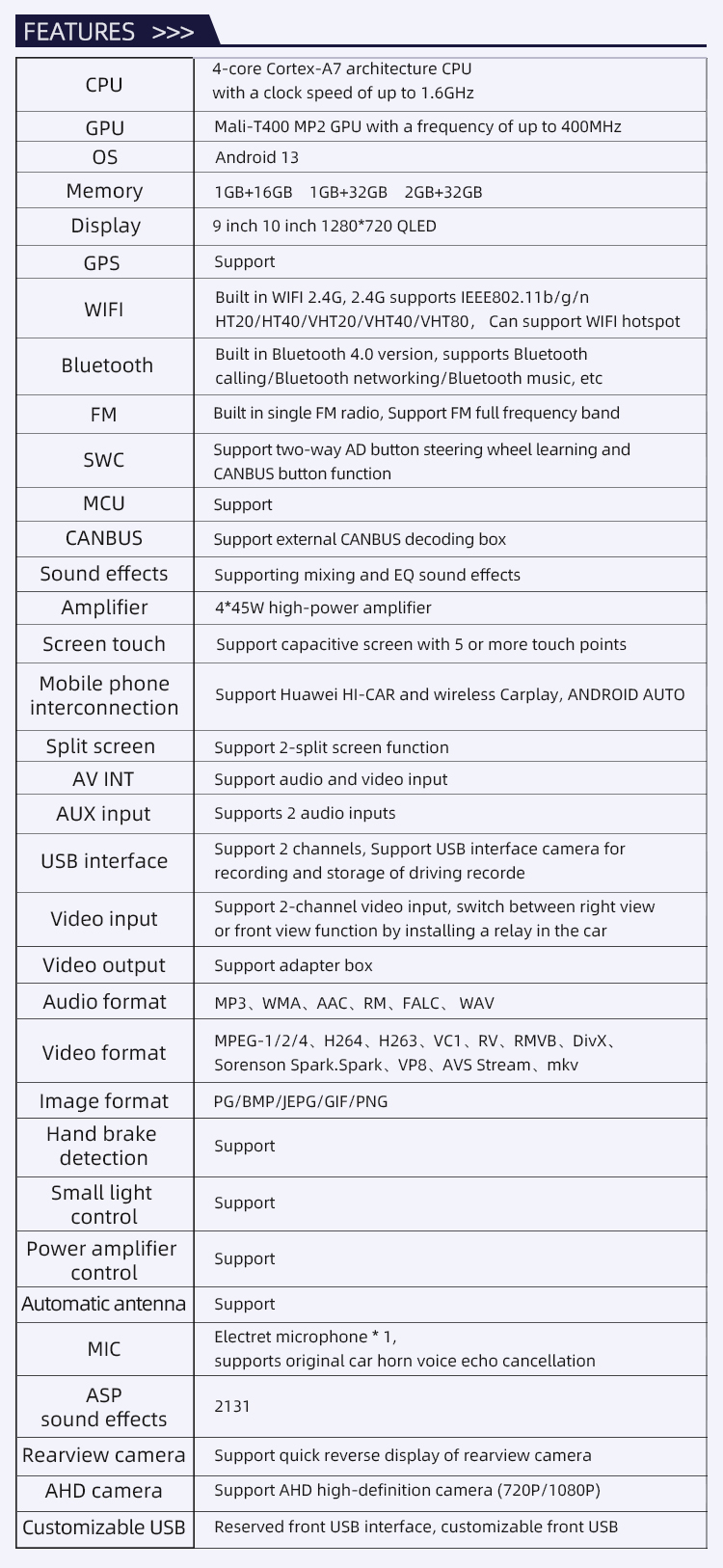

FEATURES >>>

CPU: 4-core Cortex-A7 architecture CPU with a clock speed of up to 1.6GHz

GPU: Mali-T400 MP2 GPU with a frequency of up to 400MHz

Memory: 1GB+16GB    1GB+32GB    2GB+32GB

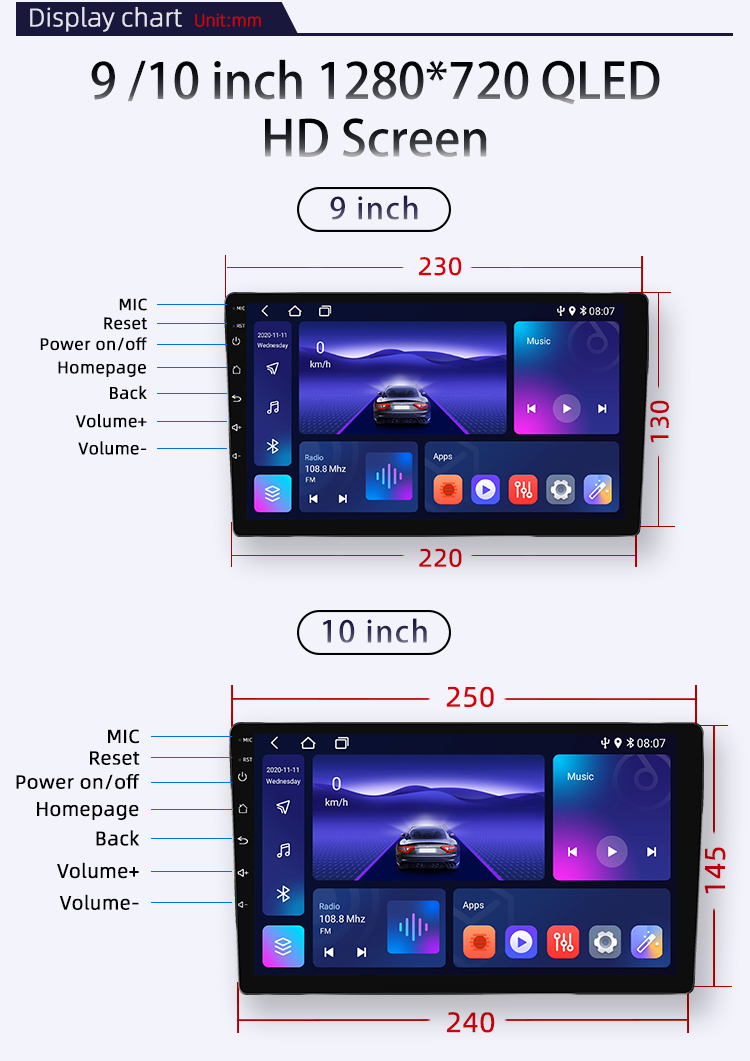

Display: 9 inch  10 inch  1280*720 QLED

GPS: Support

WIFI: Built in WIFI 2.4G, 2.4G supports IEEE802.11b/g/n, HT20/HT40/VHT20/VHT40/VHT80, Can support WIFI hotspot

OS: Android 13

Bluetooth: Built in Bluetooth 4.0 version, supports Bluetooth calling/Bluetooth networking/Bluetooth music, etc

FM: Built in single FM radio, Support FM full frequency band

MCU: Support

CANBUS: Support external CANBUS decoding box

Sound effects: Supporting mixing and EQ sound effects

Amplifier: 4*45W high-power amplifier

Mobile phone interconnection: Support mobile connectivity function

Screen touch: Support capacitive screen with 5 or more touch points

AV INT: Support audio and video input

AUX input: Supports 2 audio inputs

USB interface: Support 2 channels, Support USB interface camera for recording and storage of driving recorde

Audio format: MP3, WMA, AAC, RM, FALC, WAV

Video format: MPEG-1/2/4, H264, H263, VC1, RV, RMVB, DivX, Sorenson Spark.Spark, VP8, AVS Stream, mkv

Video input: Support 2-channel video input, switch between right view or front view function by installing a relay in the car

Video output: Support adapter box

Image format: PG/BMP/JEPG/GIF/PNG

Hand brake detection: Support

Small light control: Support

Power amplifier control: Support

Automatic antenna: Support

MIC: Electret microphone * 1, supports original car horn voice echo cancellation

ASP sound effects: 2131

Rearview camera: Support quick reverse display of rearview camera

AHD camera: Support AHD high-definition camera (720P/1080P)

Customizable USB: Reserved front USB interface, customizable front USB
