RK3326

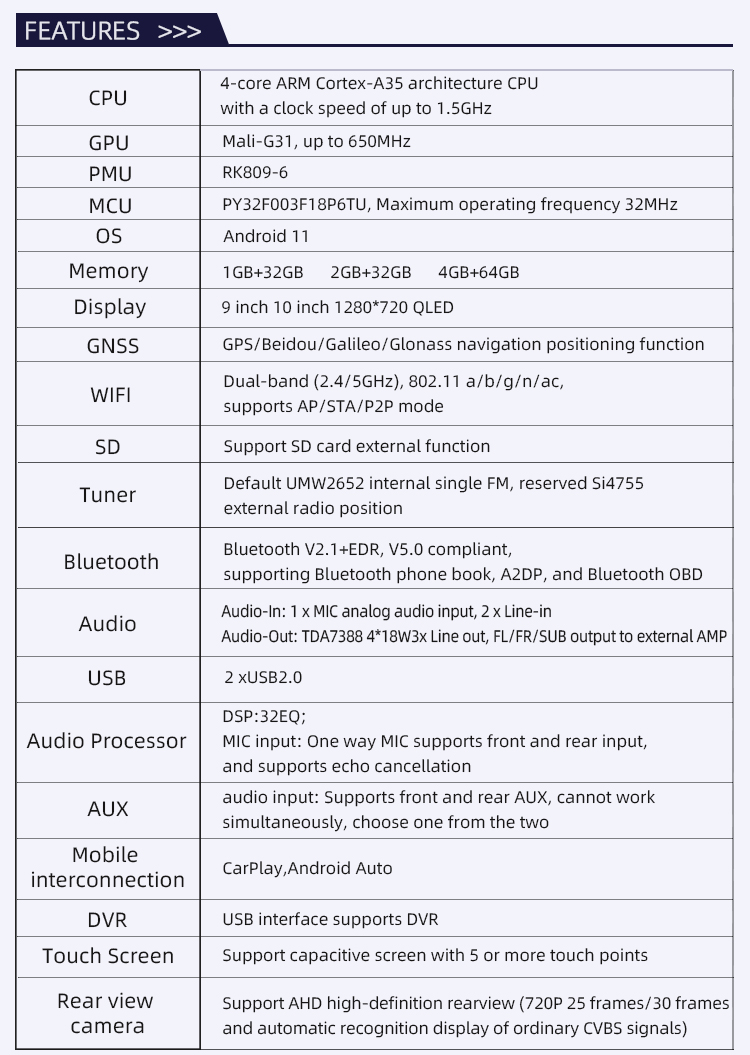

FEATURES >>>

CPU: 4-core ARM Cortex-A35 architecture CPU with a clock speed of up to 1.5GHz

GPU: Mali-G31, up to 650MHz

PMU: RK809-6

MCU: PY32F003F18P6TU, Maximum operating frequency 32MHz

Memory: 1GB+32GB; 2GB+32GB; 4GB+64GB

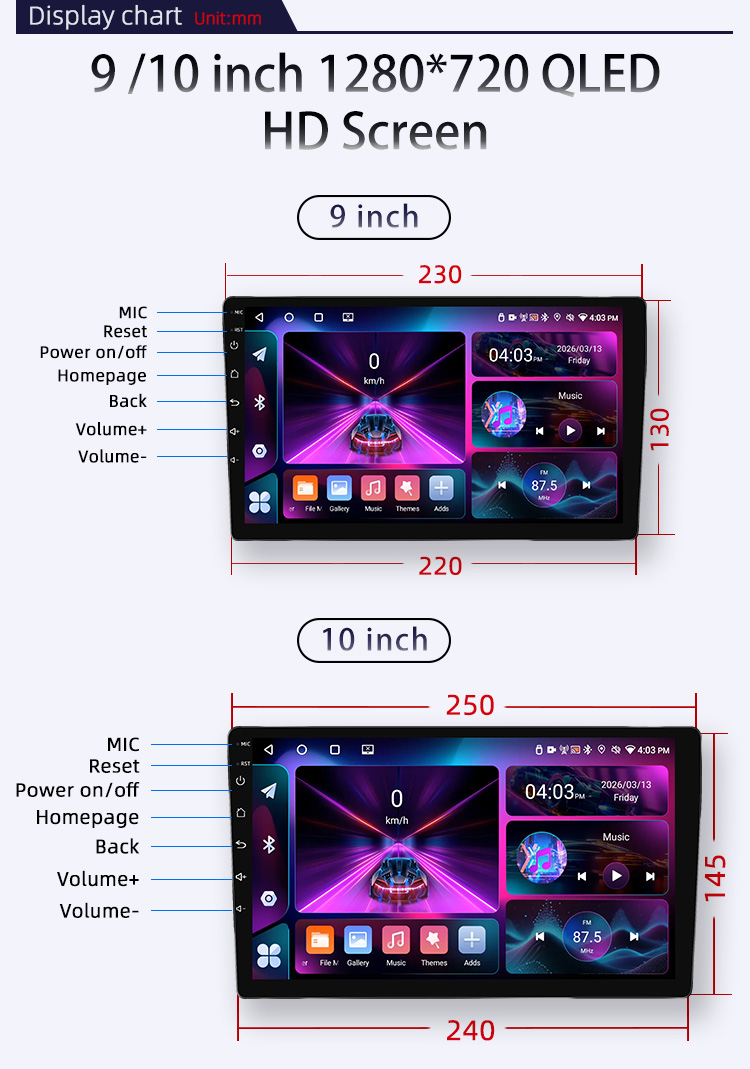

Display: 9 inch  10 inch  1280*720 QLED

GNSS: GPS/Beidou/Galileo/Glonass navigation positioning function

WIFI: Dual-band (2.4/5GHz), 802.11 a/b/g/n/ac, supports AP/STA/P2P mode

USB: 2 xUSB2.0

Mobile interconnection: CarPlay, Android Auto

Audio Processor: DSP: 32EQ; MIC input: One way MIC supports front and rear input, and supports echo cancellation

Rear view camera: Support AHD high-definition rearview (720P 25 frames/30 frames and automatic recognition display of ordinary CVBS signals)

DVR: USB interface supports DVR

AUX: audio input: Supports front and rear AUX, cannot work simultaneously, choose one from the two
