RK3576

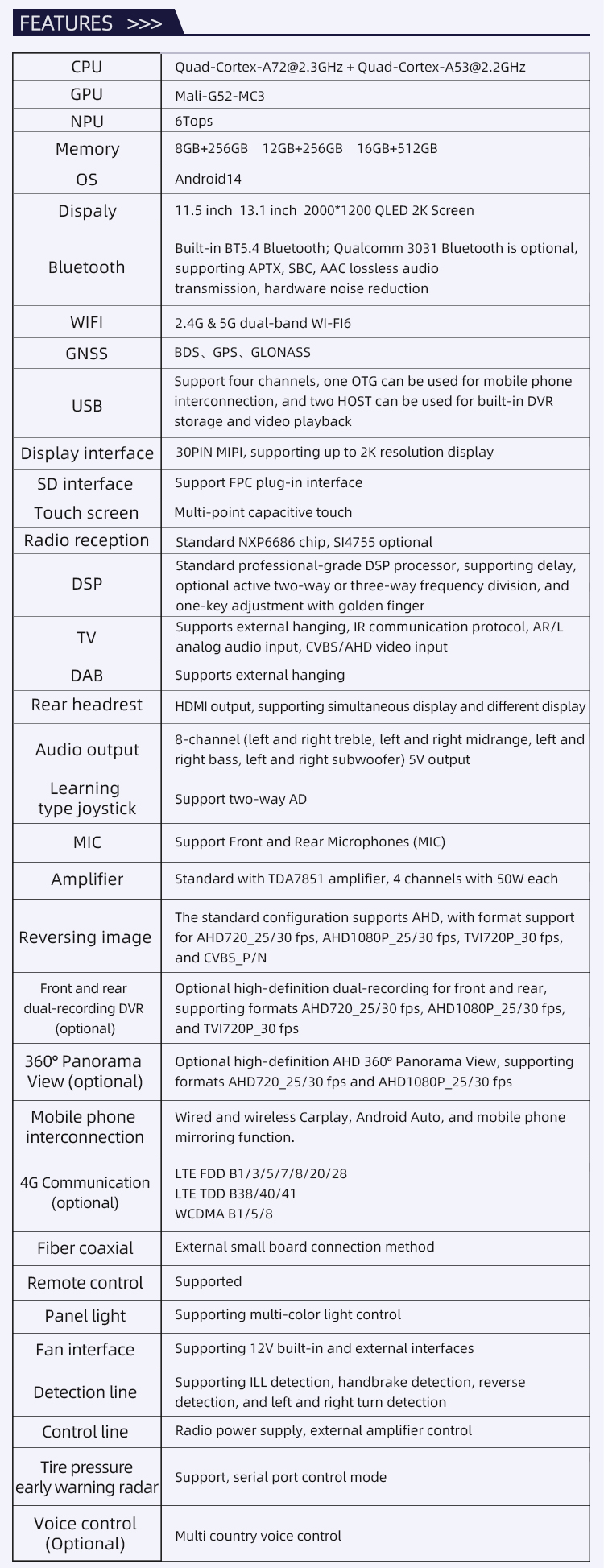

FEATURES >>>

CPU: Quad-Cortex-A72@2.3GHz + Quad-Cortex-A53@2.2GHz

GPU: Mali-G52-MC3

NPU: 6Tops

Memory: 8GB+256GB    12GB+256GB    16GB+512GB

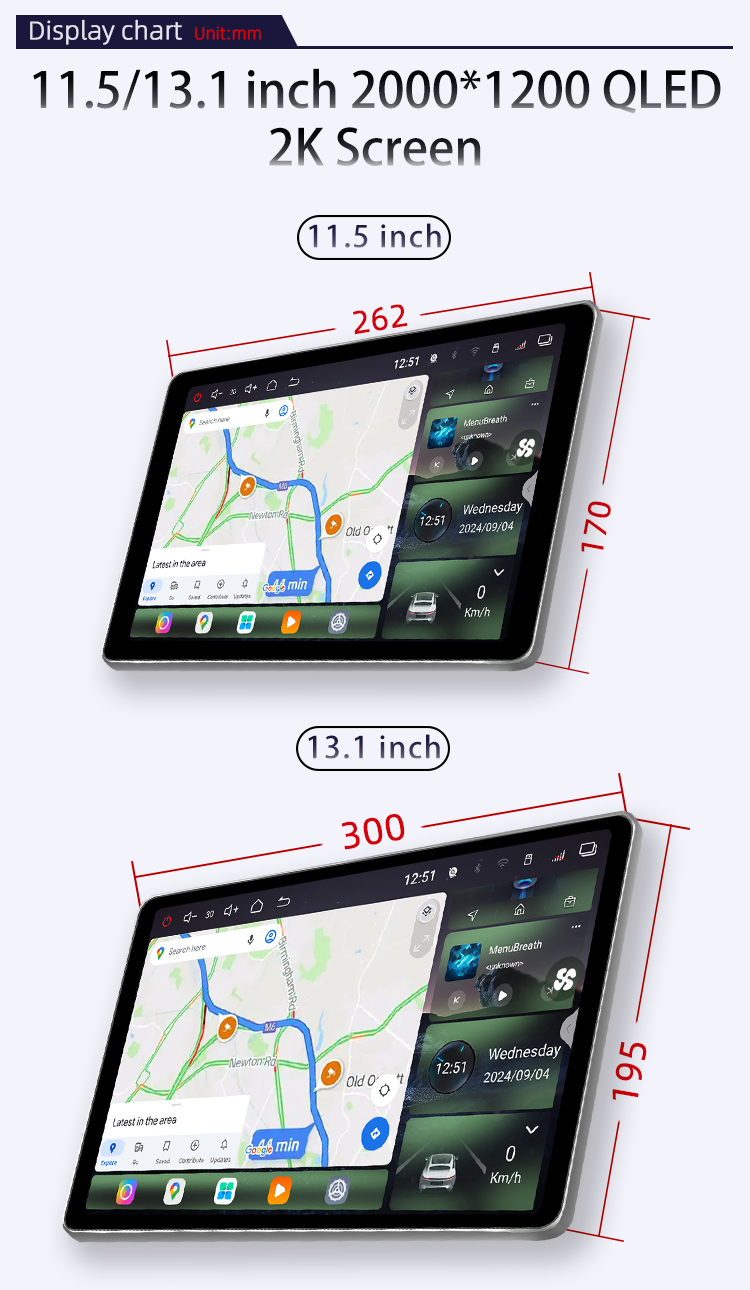

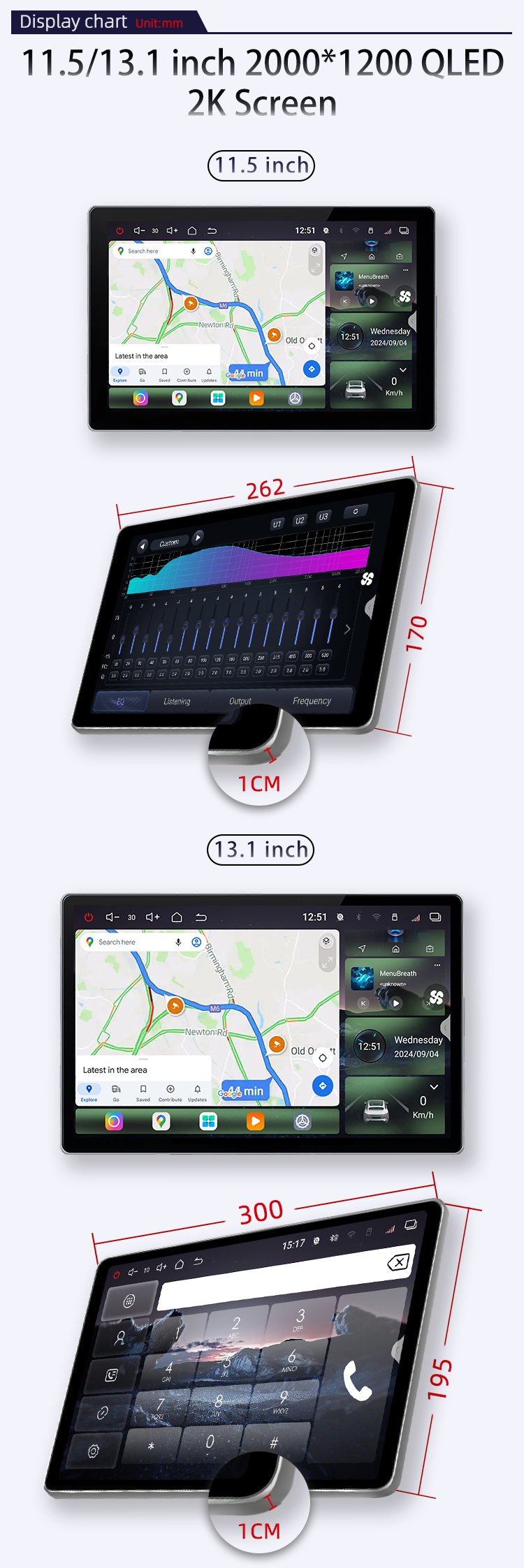

Display: 11.5 inch  13.1 inch  2000*1200 QLED 2K Screen

GNSS: BDS、GPS、GLONASS

WIFI: 2.4G & 5G dual-band WI-FI6

OS: Android 14

Bluetooth: Built-in BT5.4 Bluetooth; Qualcomm 3031 Bluetoothsupporting APTX, SBC, AAC lossless audio transmission, hardware noise reduction

USB: Support four channels, one OTG can be used for mobile phone interconnection, and two HOST can be used for built-in DVR storage and video playback

Display interface: 30PIN MIPI, supporting up to 2K resolution display

USB interface: 1 way, USB 2.0 Extensible on the motherboard

SD interface: Support FPC plug-in interface

Radio reception: Standard NXP6686 chip, Si4755 optional

Touch screen: Multi-point capacitive touch

DSP: Standard professional-grade DSP processor, supporting delay, optional active two-way or three-way frequency division, and one-key adjustment with golden finger

TV: Supports external hanging, IR communication protocol, AR/L analog audio input, CVBS/AHD video input

DAB: Supports external hanging

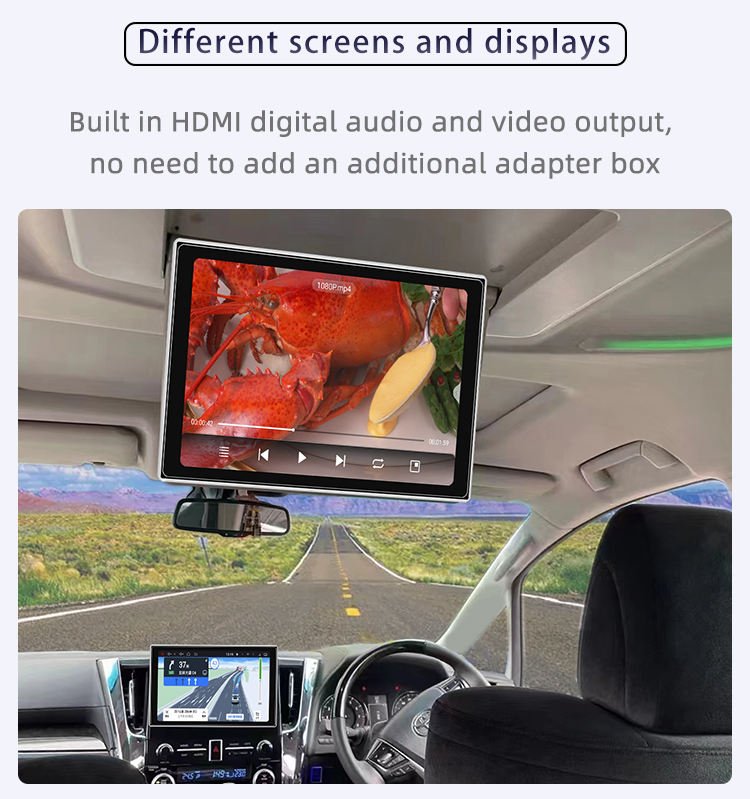

Rear headrest: HDMI output, supporting simultaneous display and different display

Audio output: 8-channel (left and right treble, left and right midrange, left and right bass, left and right subwoofer) 5V output

Learning type joystick: Support two-way AD

MIC: Support Front and Rear Microphones (MIC)

Amplifier: Standard with TDA7851 amplifier, 4 channels with 50W each

Reversing image: The standard configuration supports AHD, with format support for AHD720_25/30 fps, AHD1080P_25/30 fps, TVI720P_30 fps, and CVBS_P/N

Front and rear dual-recording DVR (optional): Optional high-definition dual-recording for front and rear, supporting formats AHD720_25/30 fps, AHD1080P_25/30 fps, and TVI720P_30 fps

360° Panorama View (optional): Optional high-definition AHD 360° Panorama View, supporting formats AHD720_25/30 fps and AHD1080P_25/30 fps

Mobile phone interconnection: Wired and wireless Carplay, Android Auto, and mobile phone mirroring function.

4G Communication (optional): Support Front and Rear Microphones (MIC)

Fiber coaxial: External small board connection method

Remote control: Supported

Fan interface: Supporting 12V built-in and external interfaces

Detection line: Radio power supply, external amplifier control

Tire pressure early warning radar: Support, serial port control mode

Voice control (Optional): Multi country voice control
