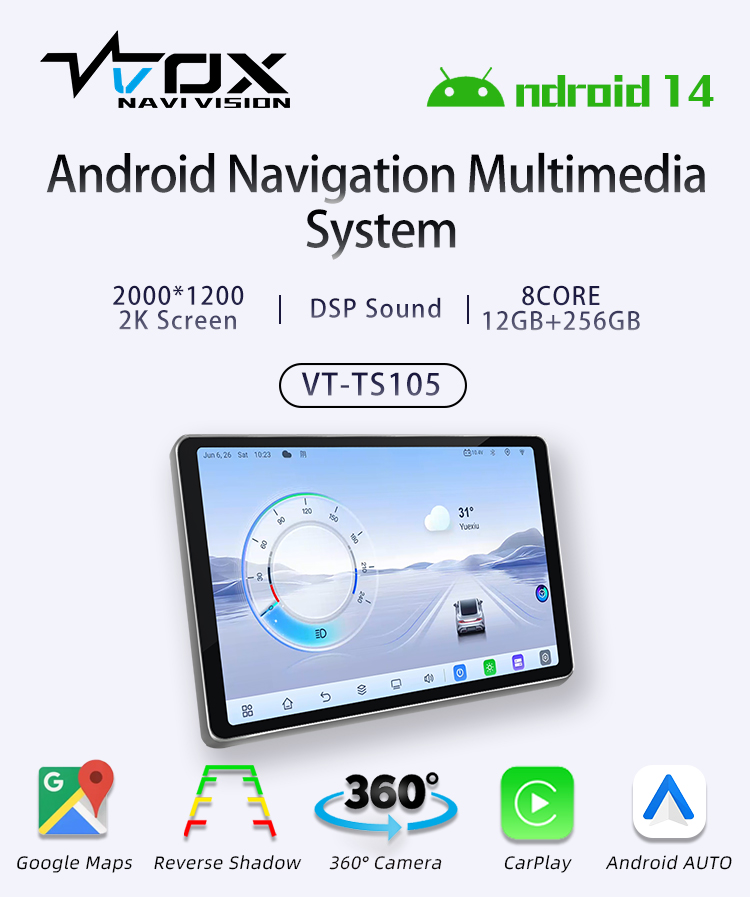

TS105

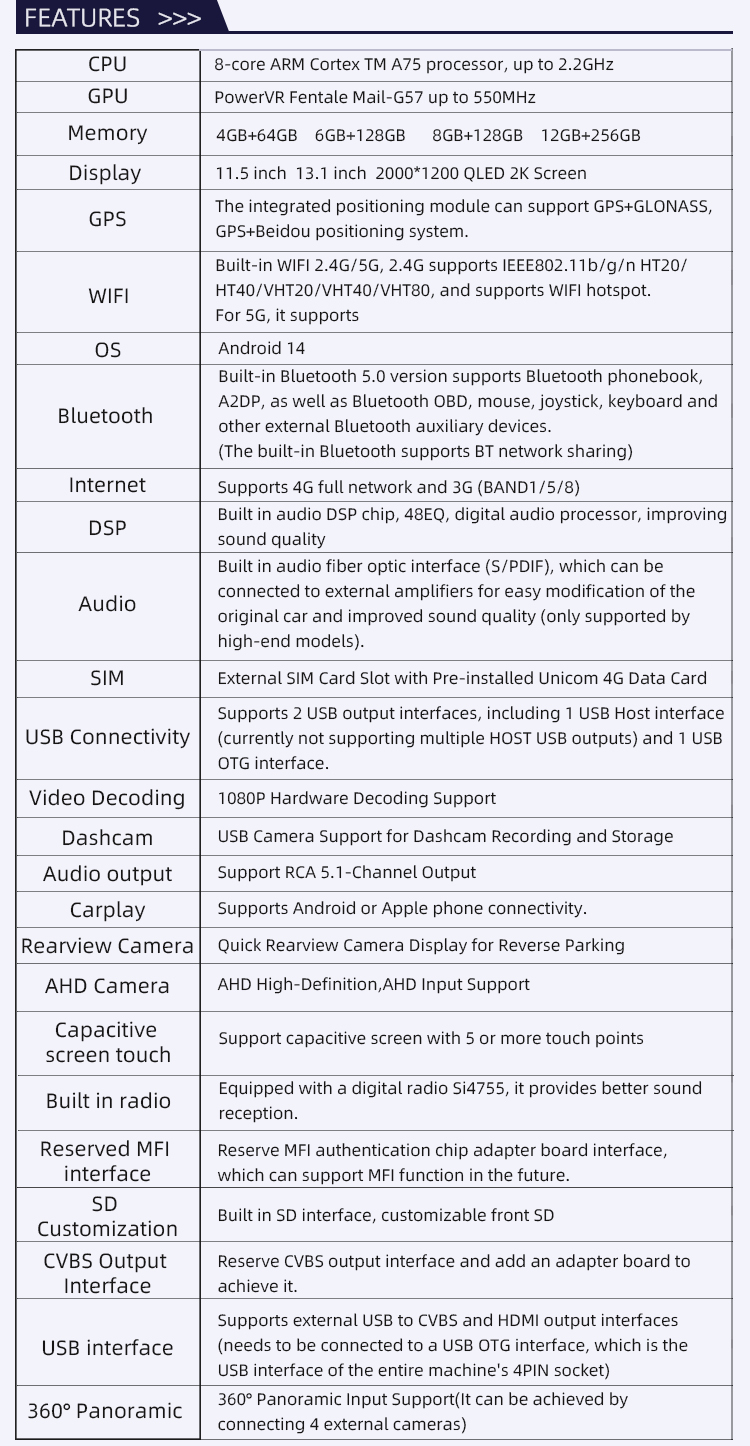

FEATURES >>>

CPU: 8-core ARM Cortex TM A75 processor, up to 2.2GHz

GPU: PowerVR Fentale Mail-G57 up to 550MHz

Memory: 4GB+64GB    6GB+128GB    8GB+128GB    12GB+256GB

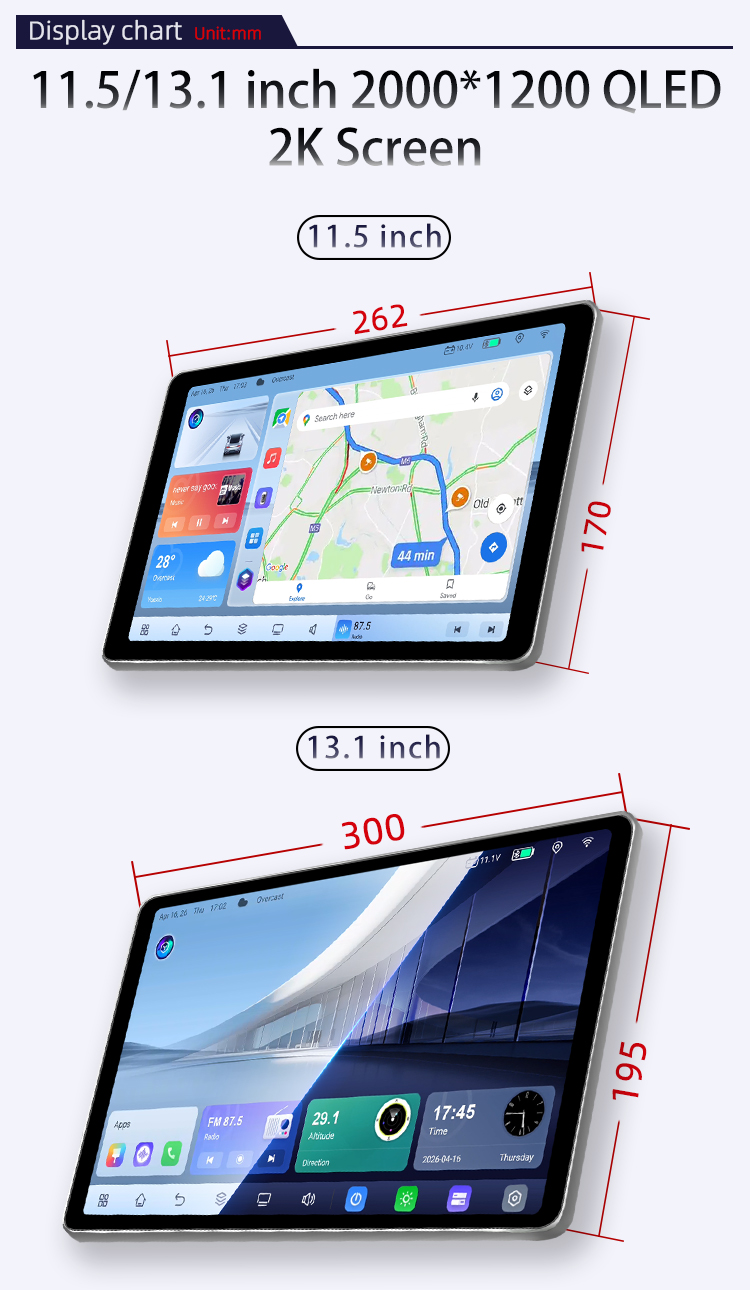

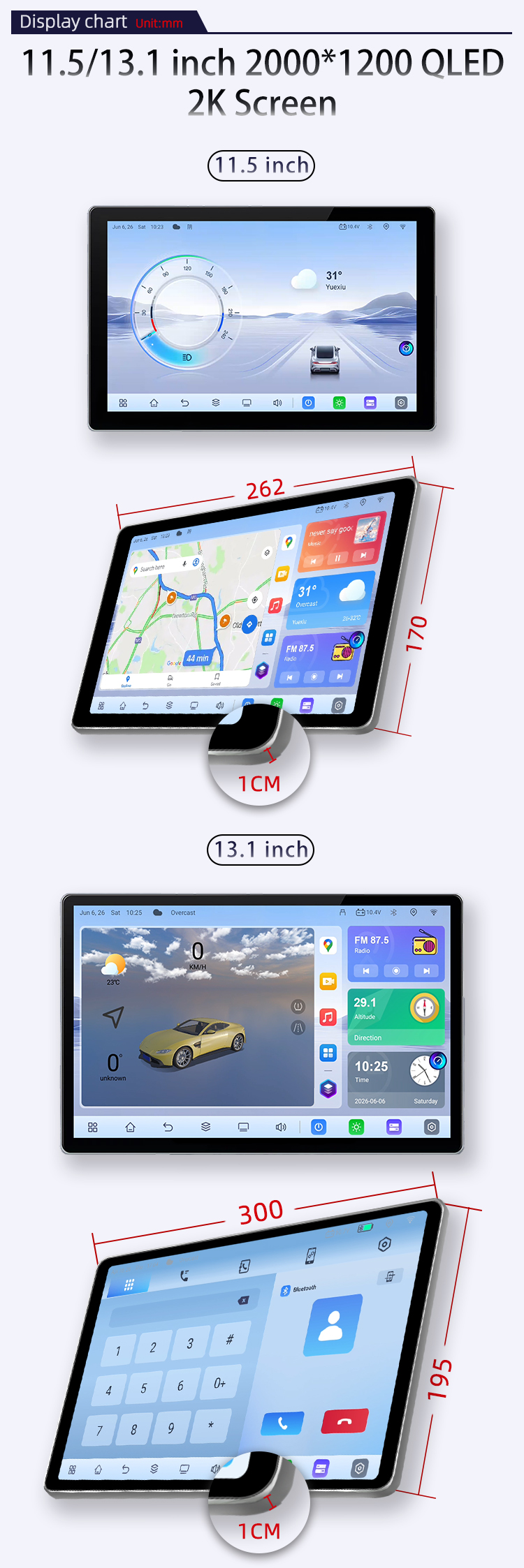

Display: 11.5 inch  13.1 inch  2000*1200 QLED 2K Screen

GPS: The integrated positioning module can support GPS+GLONASS, GPS+Beidou positioning system

WIFI: Built-in WIFI 2.4G/5G, 2.4G supports IEEE802.11b/g/n HT20/HT40/VHT20/VHT40/VHT80, and supports WIFI htspot. For 5G, it supports

OS: Android 14

Bluetooth: Built-in Bluetooth 5.0 version supports Bluetooth phonebook, A2DP, as well as Bluetooth OBD, mouse, joystick, keyboard and other external Bluetooth auxiliary devices.(The built-in Bluetooth supports BT network sharing)

Internet: Supports 4G full network and 3G (BAND1/5/8)

DSP: Built in audio DSP chip, 48EQ, digital audio processor, improving sound quality

Audio: Built in audio fiber optic interface (S/PDIF), which can be connected to external amplifiers for easy modification of the original car and improved sound quality (only supported by high-end models).

SIM: External SIM Card Slot with Pre-installed Unicom 4G Data Card

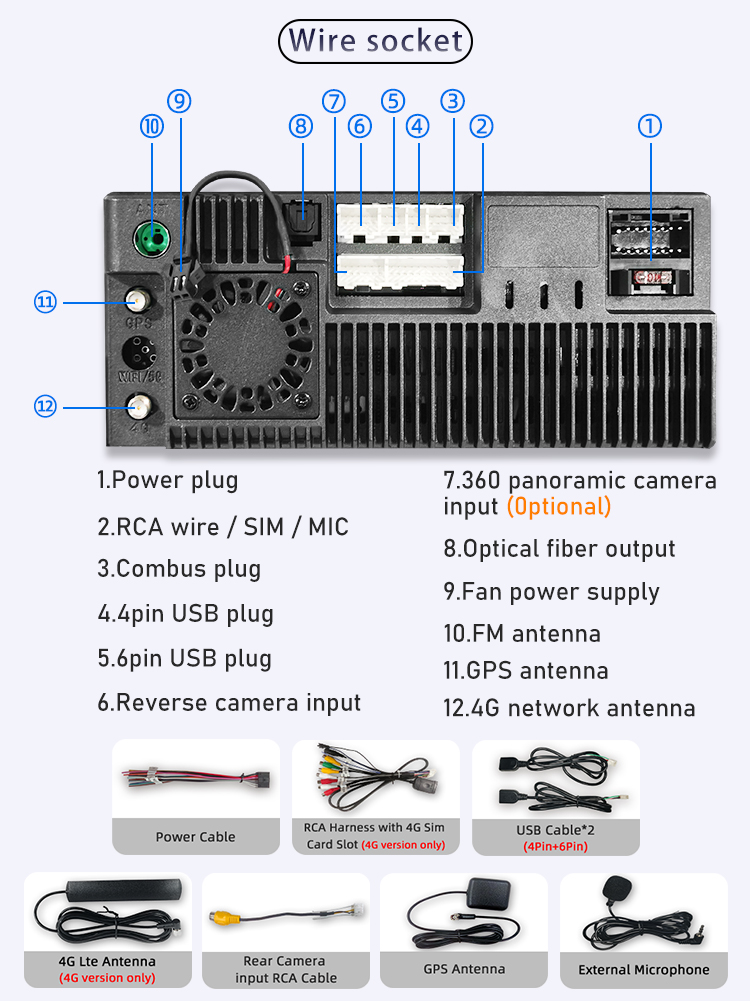

USB Connectivity: Supports 2 USB output interfaces, including 1 USB Host interface (currently not supporting multiple HOST USB outputs) and 1 USB OTG interface.

Video Decoding: 1080P Hardware Decoding Support

Dashcam: USB Camera Support for Dashcam Recording and Storage

Audio output: Support RCA 5.1-Channel Output

Carplay: Supports Android or Apple phone connectivity

Rearview Camera: Quick Rearview Camera Display for Reverse Parking

AHD Camera Input: AHD High-Definition Camera Input Support

Capacitive screen touch: Support capacitive screen with 5 or more touch points

Radio: Equipped with a digital radio TDA7851, it provides better sound reception

Reserved MFI interface: Reserve MFI authentication chip adapter board interface, which can support MFI function in the future.

SD Customization: Built in SD interface, customizable front SD

CVBS Output Interface: Reserve CVBS output interface and add an adapter board to achieve it

360° Panoramic: 360° Panoramic AHD Input Support
