UIS8581A

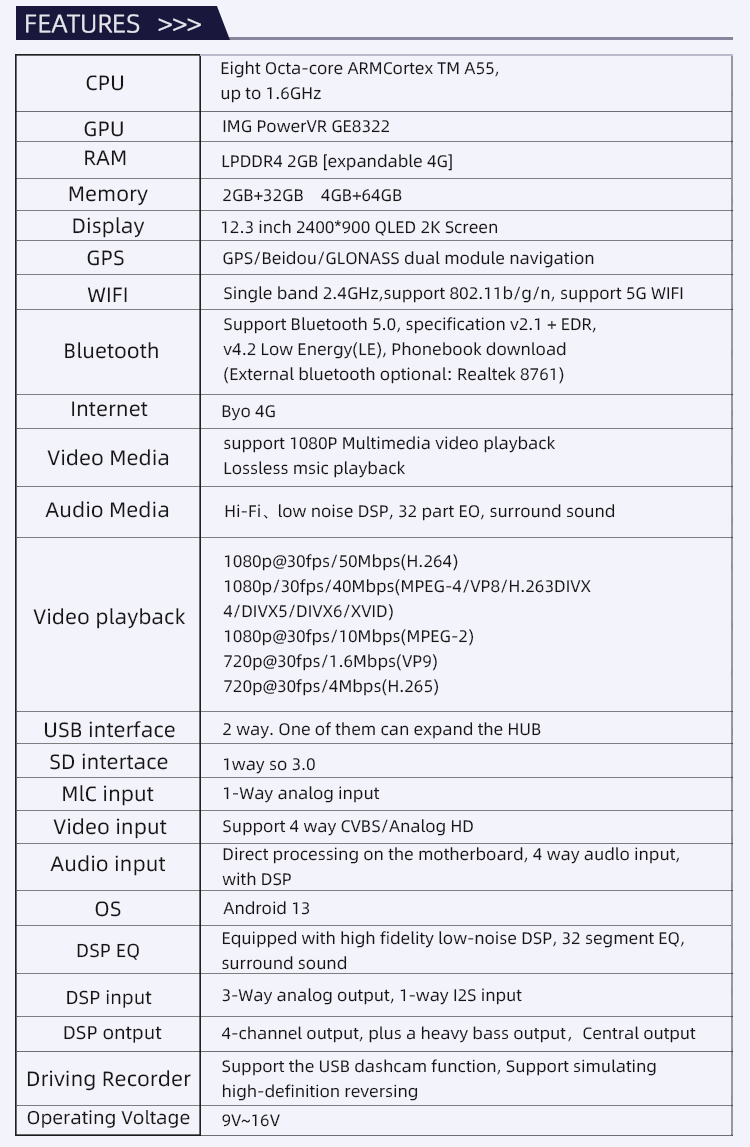

FEATURES >>>

CPU: Eight Octa-core ARMCortex TM A55, up to 1.6GHz

GPU: IMG PowerVR GE8322 504MHz

Memory: 2GB+32GB  4GB+64GB

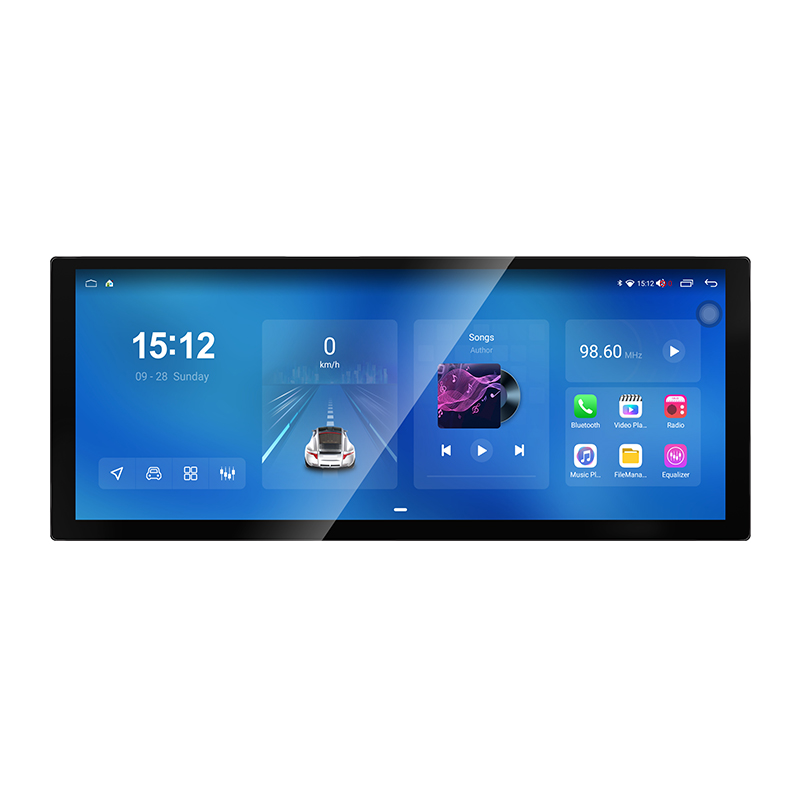

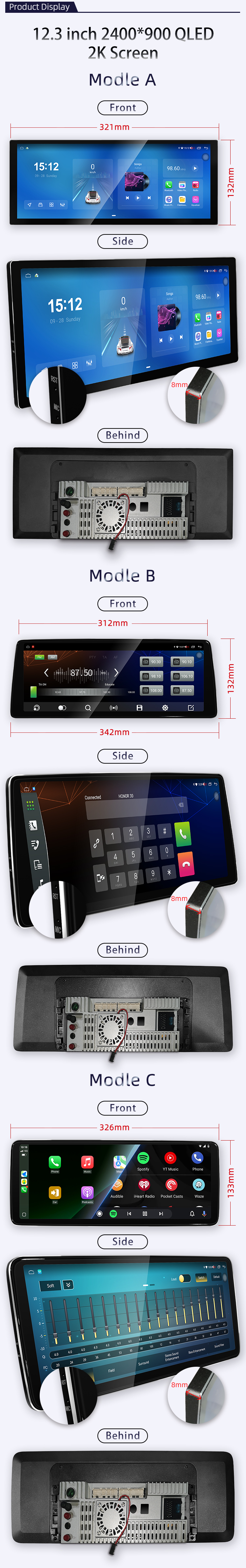

Display: 12.3 inch  2400*900 QLED 2K Screen

GPS: GPS/Beidou/GLONASS dual module navigation

WIFI: Single band 2.4GHz,support 802.11b/g/n, support 5G WIFI

OS: Android 13

Bluetooth: Support Bluetooth 5.0, specification v2.1 + EDR, v4.2 Low Energy(LE), Phonebook download (External bluetooth optional: Realtek 8761)

Internet: Byo 4G

Video Media: support 1080P Multimedia video playbackLossless msic playback

Video playback: 1080p@30fps/50Mbps(H.264);

1080p/30fps/40Mbps(MPEG-4/VP8/H.263DIVX4/DIVX5/DIVX6/XVID);

1080p@30fps/10Mbps(MPEG-2);

720p@30fps/1.6Mbps(VP9);

720p@30fps/4Mbps(H.265);

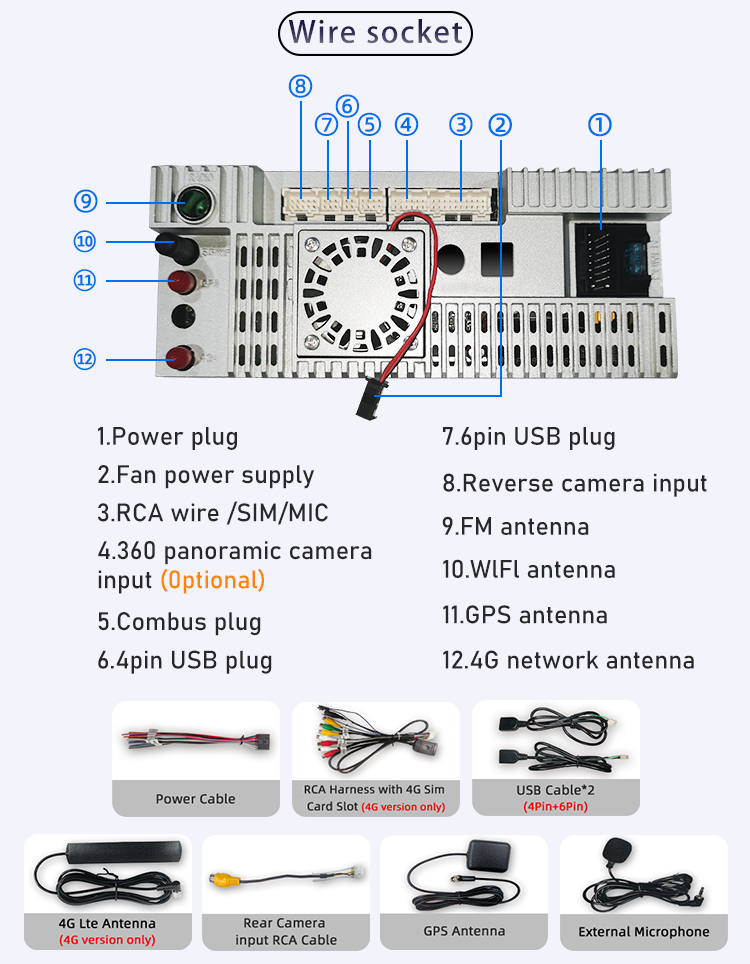

USB interface: 2 way. One of them can expand the HUB

SD interface: 1way so 3.0

MlC input: 1-Way analog input

Video input: Support 4 way CVBS/Analog HD

Audio input: Direct processing on the motherboard, 4 way audlo input,with DSP

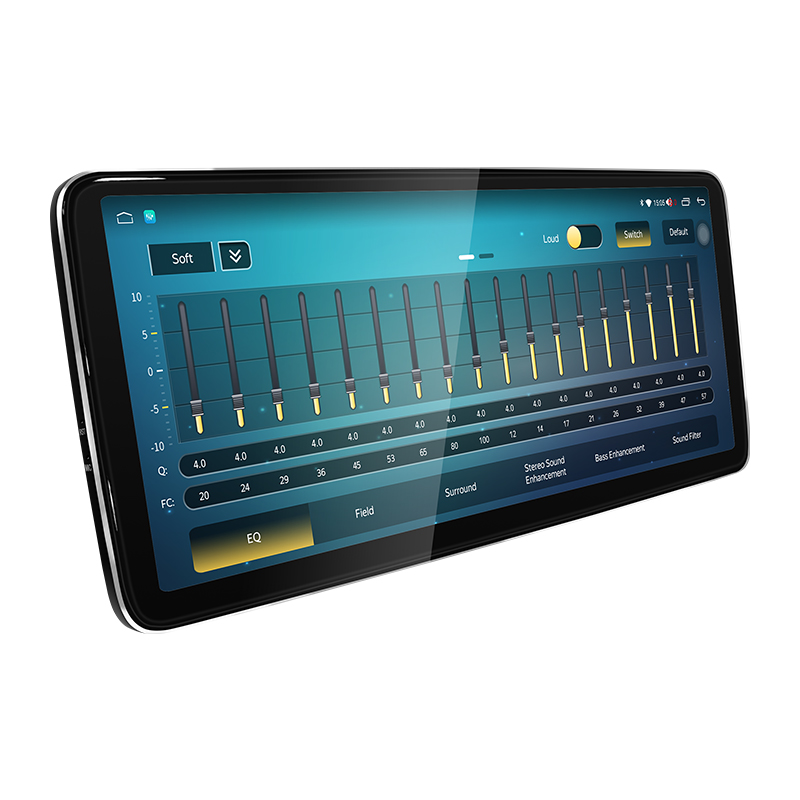

DSP EQ: Equipped with high fidelity low-noise DSP, 32 segment EQ, surround sound

DSP input: 3-Way analog output, 1-way I2S input

DSP ontput: 4-channel output, plus a heavy bass output，Central output

Driving Recorder: Support the USB dashcam function, Support simulating high-definition reversing
