SDM450

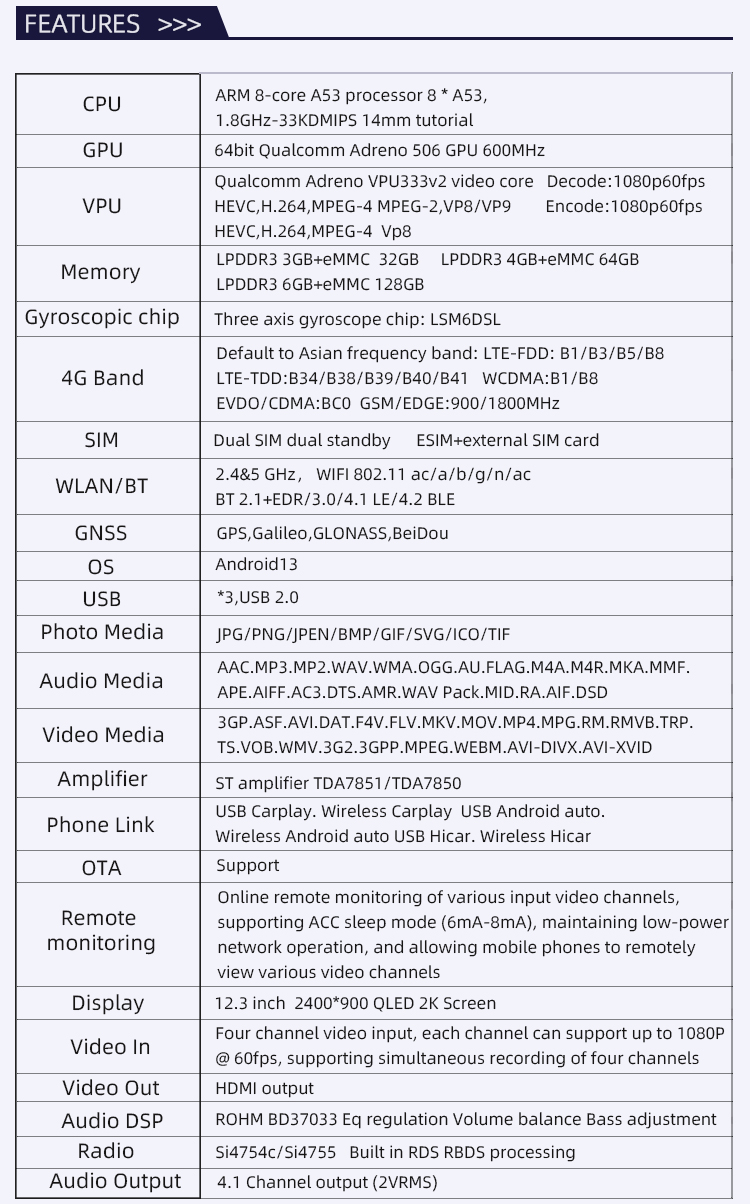

FEATURES >>>

CPU: ARM 8-core A53 processor 8 * A53, 1.8GHz-33KDMIPS 14mm tutorial

GPU: 64bit Qualcomm Adreno 506 GPU 600MHz

VPU: Qualcomm Adreno VPU333v2 video core; Decode:1080p60fps;

HEVC,H.264,MPEG-4 MPEG-2,VP8/VP9; Encode:1080p60fps;

HEVC,H.264,MPEG-4  Vp8;

Memory: 3GB+32GB    4GB+64GB   6GB+128GB

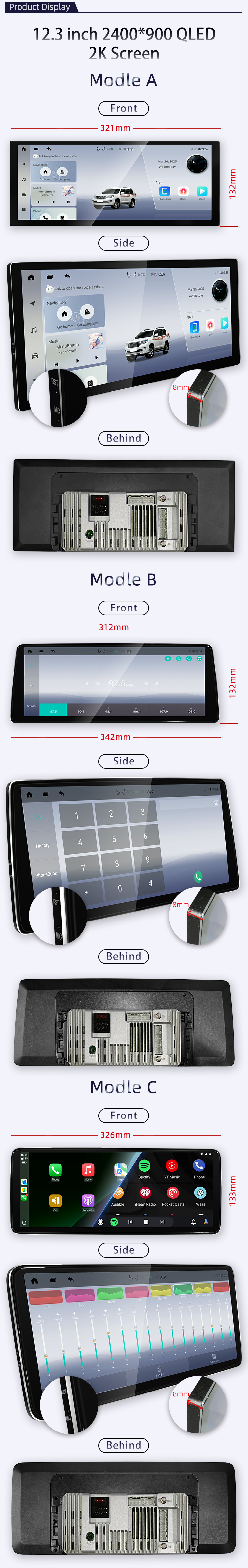

Display: 12.3 inch  2400*900 QLED 2K Screen

Gyroscopic chip: Six axis gyroscope chip: LSM6DSL

4G Band: Default to Asian frequency band: LTE-FDD: B1/B3/B5/B8;

LTE-TDD:B34/B38/B39/B40/B41;   WCDMA:B1/B8;

EVDO/CDMA:BC0  GSM/EDGE:900/1800MHz;

GNSS: GPS,Galileo,GLONASS,BeiDou

WIFI/BT: 2.4&5 GHz, WIFI 802.11 ac/a/b/g/n/ac; BT 2.1+EDR/3.0/4.1 LE/4.2 BLE

OS: Android 13

SIM: Dual SIM dual standby ESIM+external SIM card

Internet: Supports 4G full network and 3G (BAND1/5/8)

DSP: Built in audio DSP chip, digital audio processor, improving sound quality

Audio: Built in audio fiber optic interface (S/PDIF), which can be connected to external amplifiers for easy modification of the original car and improved sound quality (only supported by high-end models).

SIM: External SIM Card Slot with Pre-installed Unicom 4G Data Card

USB: *3,USB 2.0

Photo Media: JPG/PNG/JPEG/BMP/GIF/SVG/ICO/TIF

Audio Media: AAC. MP3. MP2. WAV. WMA. OGG. AU. FLAG. M4A. M4R. MKA. MMF. APE. AIFF. AC3. DTS. AMR. WAV Pack. MID. RA. AIF. DSD

Video Media: 3GP. ASF. AVI. DAT. F4V. FLV. MKV. MOV. MP4. MPG. RM. RMVB. TRP. TS. VOB. WMV. 3G2. 3GPP. MPEG. WEBM. AVI-DIVX. AVI-XVID

Amplifier: ST amplifier TDA7851/TDA7850

Audio DSP: Si47925 HIFI DSP, DTS sound effect algorithm genuine authorization, each unit has paid a patent fee. 36 segment EQ

Radio: Si47925, Support professional radio for multipath interference processing, with built-in RDS RBDS processing

Phone Link: USB Carplay. Wireless Carplay   USB Android auto. Wireless Android auto USB Hicar. Wireless Hicar

Video input: Four channel video input, each channel can support up to 1080P @ 60fps, supporting simultaneous recording of four channels

Video output: HDMI output

Audio DSP: ROHM BD37033 Eq regulation Volume balance Bass adjustment

Audio Output: 4.1 Channel output (2VRMS)

Radio: Si4754c/Si4755   Built in RDS RBDS processing

OTA: Support

Remote monitoring: Online remote monitoring of various input video channels, supporting ACC sleep mode (6mA-8mA), maintaining low-power network operation, and allowing mobile phones to remotely view various video channels
