VT-TS20

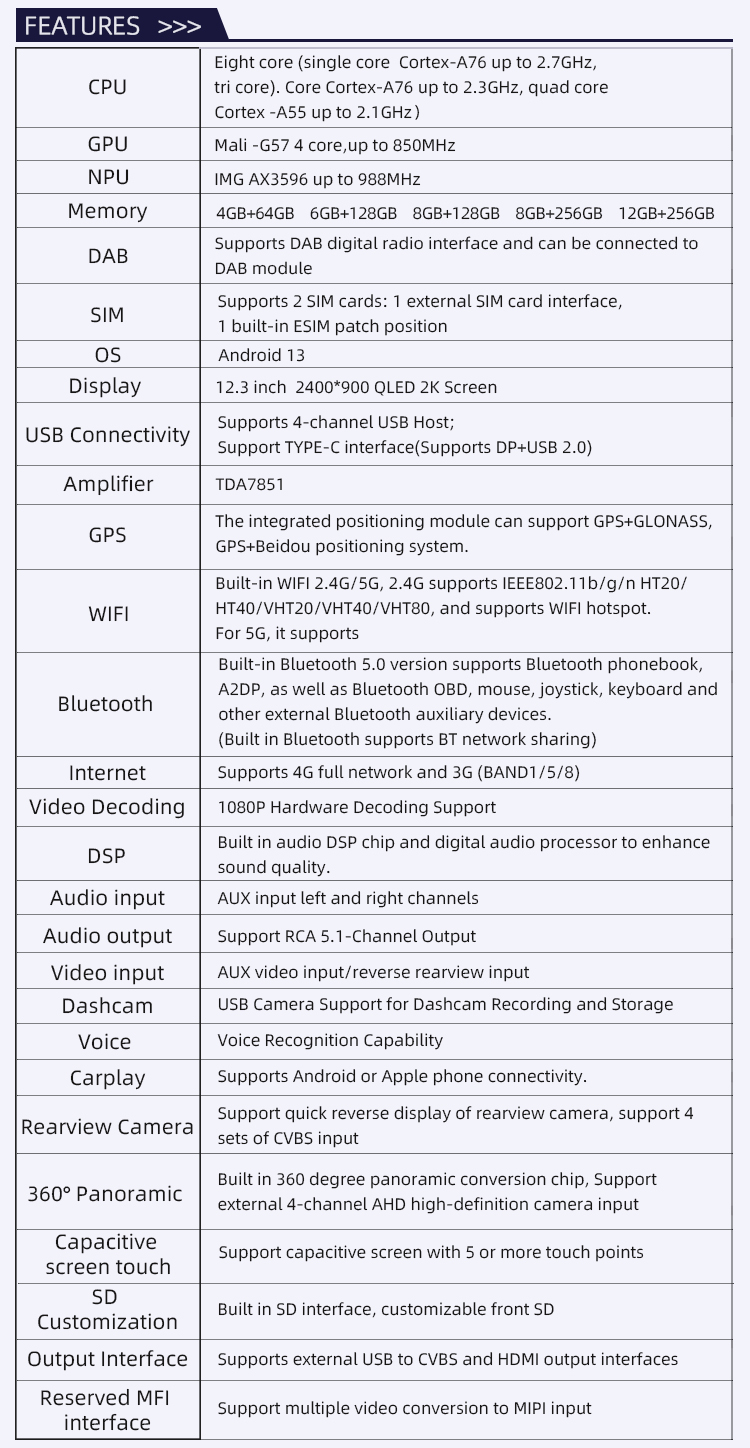

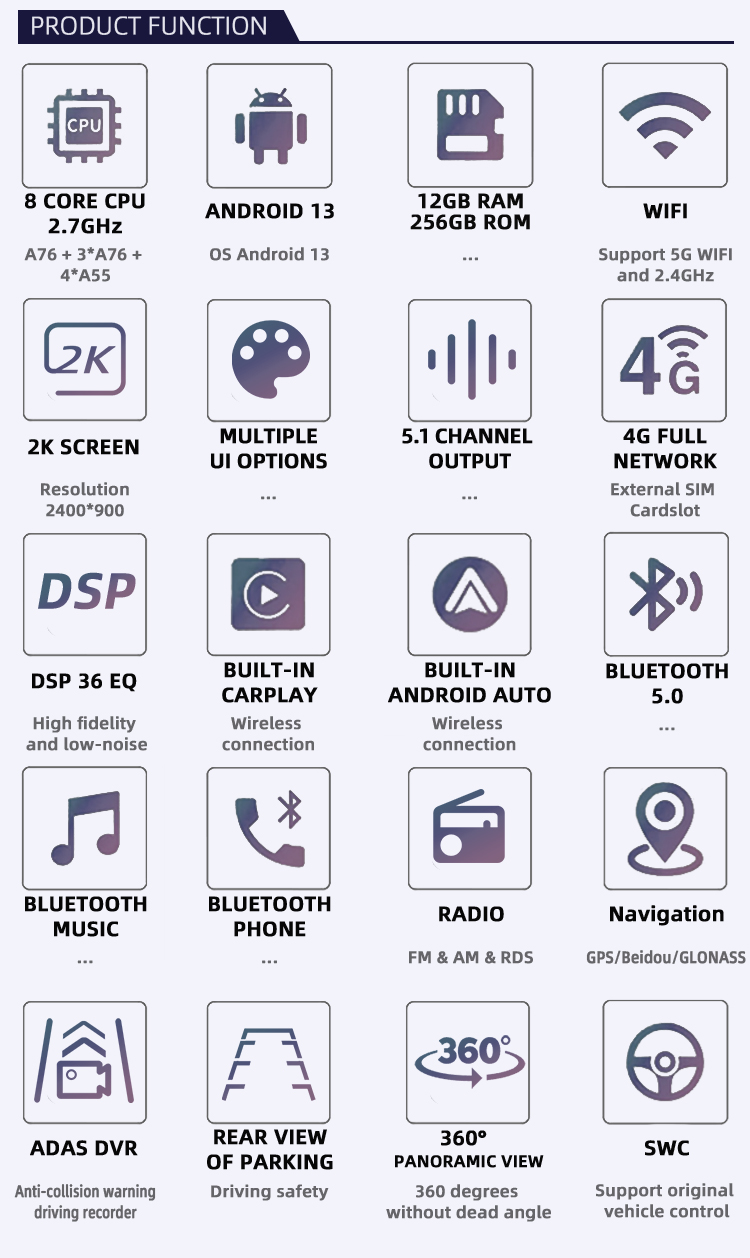

FEATURES >>>

CPU: Eight core (single core  Cortex-A76 up to 2.7GHz, tri core). Core Cortex-A76 up to 2.3GHz, quad core Cortex -A55 up to 2.1GHz）

GPU: Mali -G57 4 core,up to 850MHz

NPU: IMG AX3596 up to 988MHz

Memory: 4GB+64GB    6GB+128GB    8GB+128GB    8GB+256GB    12GB+256GB

DAB: Supports DAB digital radio interface and can be connected to DAB module

SIM: Supports 2 SIM cards: 1 external SIM card interface, 1 built-in ESIM patch position

OS: Android 13

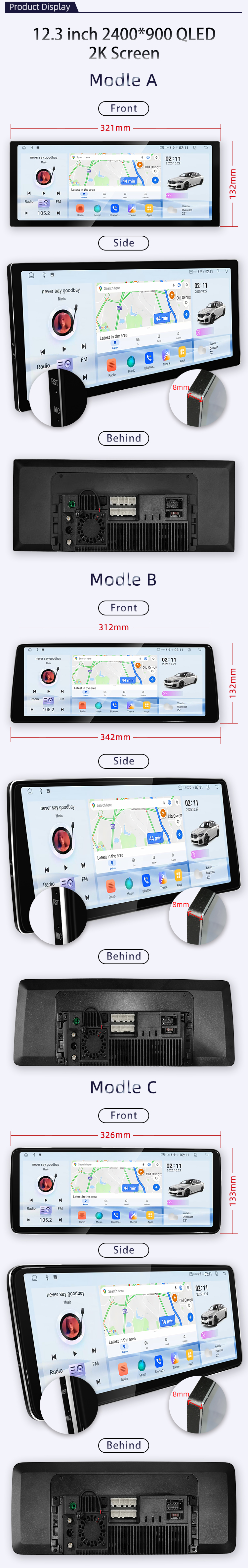

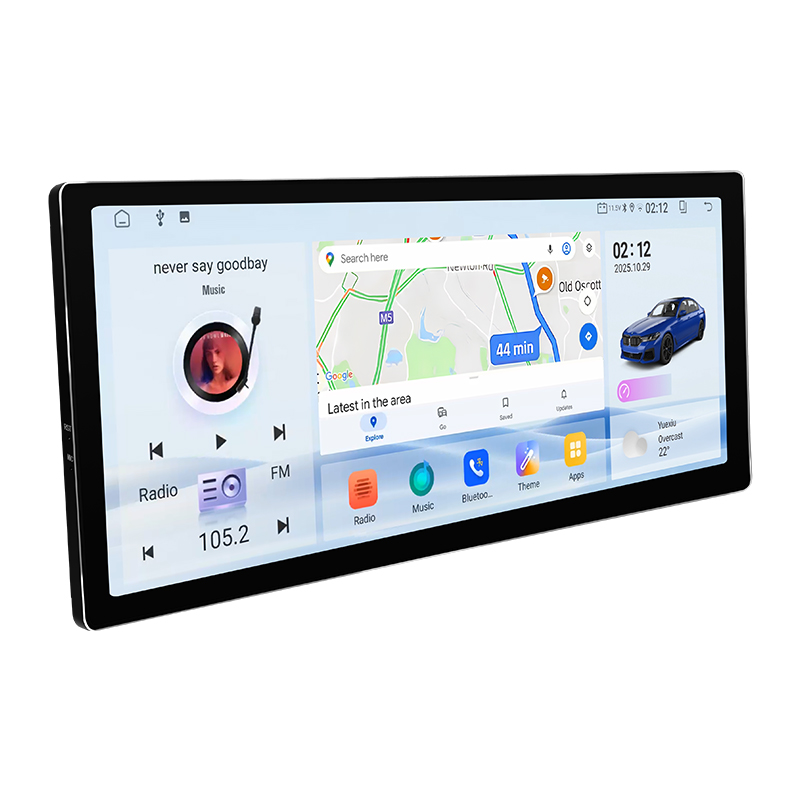

Display: 11.5 inch  13.1 inch  2000*1200 QLED 2K Screen

USB Connectivity: Supports 4-channel USB Host; Support TYPE-C interface(Supports DP+USB 2.0)

Amplifier: TDA7851

GPS: The integrated positioning module can support GPS+GLONASS, GPS+Beidou positioning system

WIFI: Built-in WIFI 2.4G/5G, 2.4G supports IEEE802.11b/g/n HT20/HT40/VHT20/VHT40/VHT80, and supports WIFI hotspot. For 5G, it supports

Bluetooth: Built-in Bluetooth 5.0 version supports Bluetooth phonebook, A2DP, as well as Bluetooth OBD, mouse, joystick, keyboard and other external Bluetooth auxiliary devices. (Built in Bluetooth supports BT network sharing)

Internet: Supports 4G full network and 3G (BAND1/5/8)

Video Decoding: 1080P Hardware Decoding Support

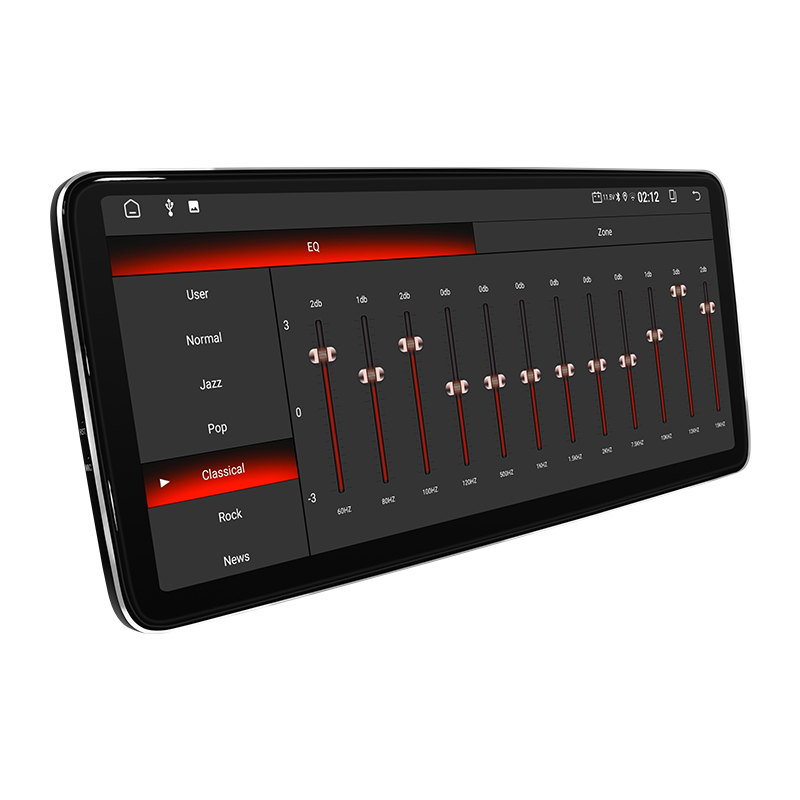

DSP: Built in audio DSP chip and digital audio processor to enhance sound quality.

Audio input: AUX input left and right channels

Audio output: Support RCA 5.1-Channel Output

Video input: AUX video input/reverse rearview input

Dashcam: USB Camera Support for Dashcam Recording and Storage

Voice: Voice Recognition Capability

Carplay: Supports Android or Apple phone connectivity.

Rearview Camera: Support quick reverse display of rearview camera, support 4 sets of CVBS input

360° Panoramic: Built in 360 degree panoramic conversion chip, Support external 4-channel AHD high-definition camera input

Capacitive screen touch: Support capacitive screen with 5 or more touch points

SD Customization: Built in SD interface, customizable front SD

Output Interface: Supports external USB to CVBS and HDMI output interfaces

Reserved MFI interface: Support multiple video conversion to MIPI input
